Hardware

The board and parts ShutterBridge runs on.

ShutterBridge targets the Waveshare ESP32-S3-Zero (ESP32-S3FH4R2: 4 MB flash, 2 MB PSRAM, native USB). Other ESP32-S3 boards may work but are untested.

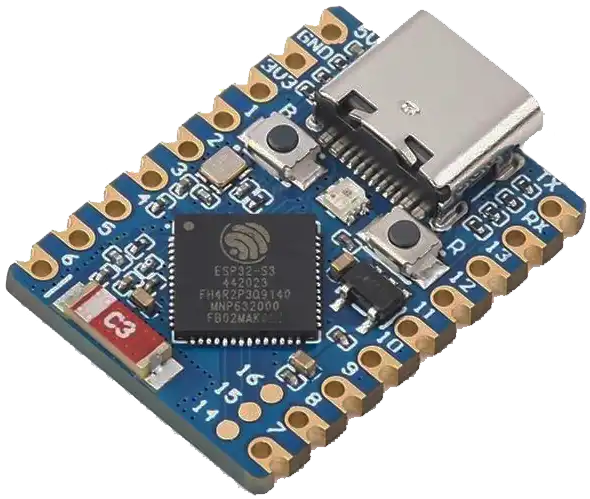

Waveshare ESP32 S3 Mini Board

You’ll need

  • The Waveshare ESP32-S3-Zero board.
  • A flight controller running Betaflight 2025.12 or newer with a free UART.
  • A supported action camera - a DJI Osmo / Action, or a GoPro HERO9 or newer.
  • A data-capable USB-C cable for flashing.
  • A soldering iron, basic soldering skills

See the compatibility chart for the full camera compatibility matrix.
